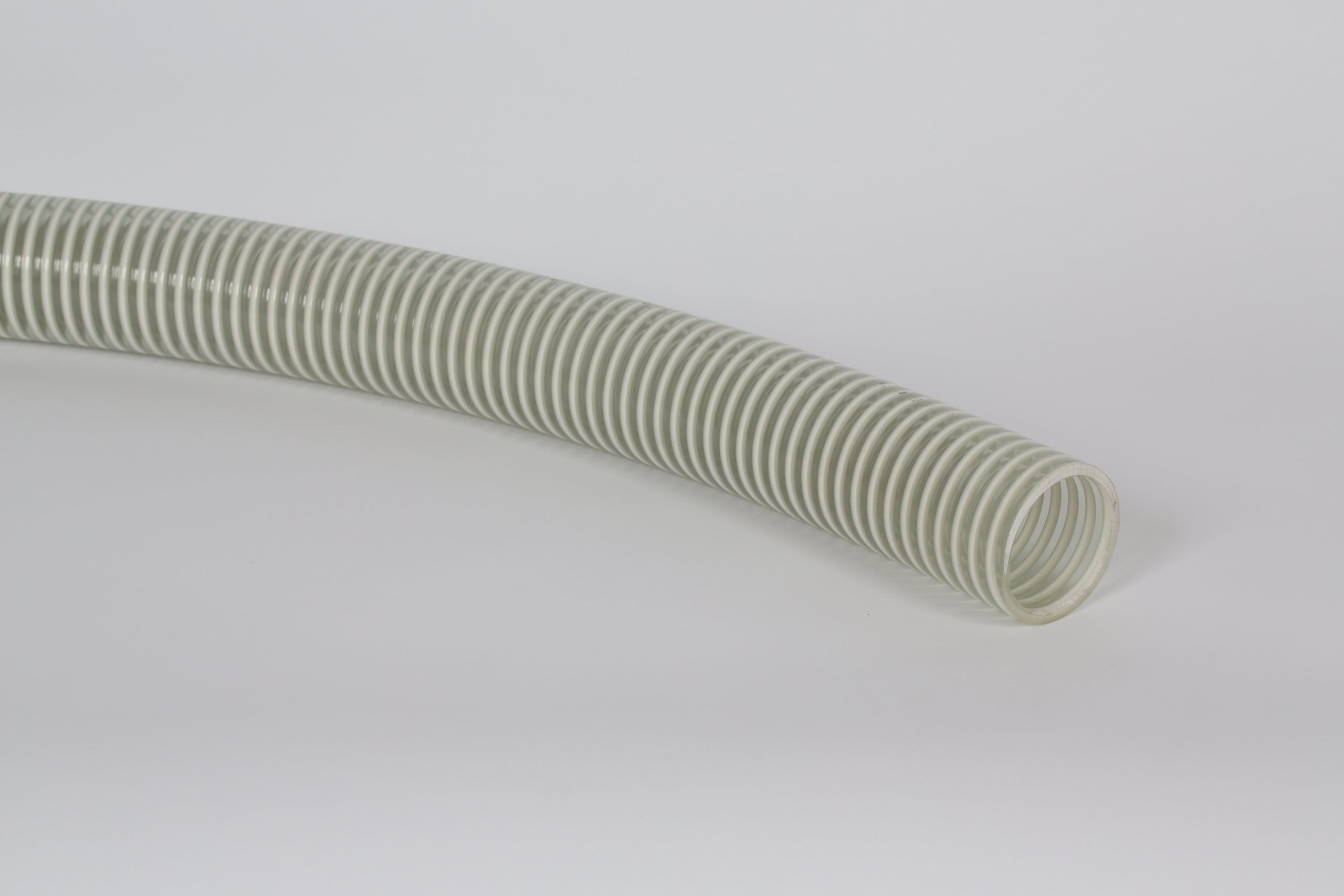

Description
Applications:
• Heavy duty water suction hose
Tube:
• Smooth bore clear flexible PVC
Reinforcement/Cover:
• Rigid PCV helix
Temp Range:
• -13°F to +140°F
Applications:
• Heavy duty water suction hose
Tube:
• Smooth bore clear flexible PVC
Reinforcement/Cover:
• Rigid PCV helix
Temp Range:
• -13°F to +140°F
Applications:
• Heavy duty water suction hose
Tube:
• Smooth bore clear flexible PVC
Reinforcement/Cover:
• Rigid PCV helix
Temp Range:
• -13°F to +140°F
| Part # |
I.D (in.) |
O.D (in.) |
Vacuum 72ºF,in .Hg |
Working PSI |
Bend Radius (in.) |
Weight (lbs/ft) |
Standard Length (ft) |
| 116CL125 | 1 1/4 | 1.47 | 29.8 | 80 | 3.0 | .29 | 100 |
| 116CL150 | 1 1/2 | 1.75 | 29.8 | 70 | 4.0 |
.39 | 100 |
| 116CL200 | 2 | 2.27 |
29.8 |
65 | 5.0 | .63 | 100 |
| 116CL250 | 2 1/2 | 2.84 | 29.8 | 65 | 6.0 | .87 | 100 |
| 116CL300 | 3 | 3.35 | 29.8 | 65 | 6.0 | .87 | 100 |
| 116CL400 | 4 | 4.45 | 29.8 | 55 | 8.0 | 1.05 | 100 |
